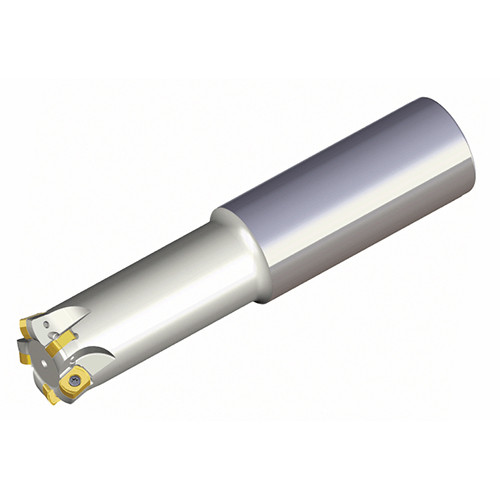

TEBL 426-25-06-L200
High feed end mills with BLMP 06 inserts of 4 cutting edges in max. ap 1.0 mm
Price: Log in For Price

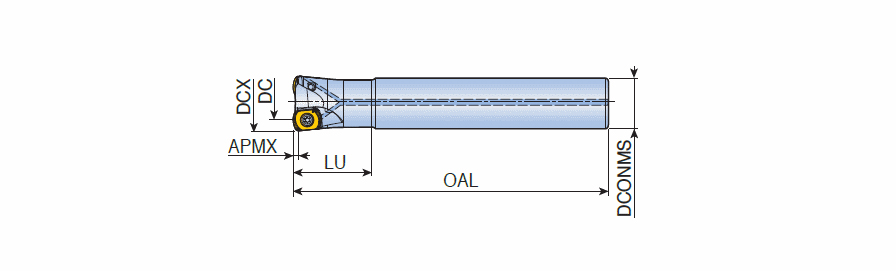

| Cutting Diameter (DC/DCX) | 26 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Diameter (DC) | 26 mm | Master Insert Identification (MIID) | BLMP 0603R-M |
| Cutting Item Count (CICT) | 4 | Head Length (LH) | 30 mm |
| Depth of Cut Maximum (APMX) | 1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 200 mm | Body Material | Steel |
| Shank Type | Round | Unit | M |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | |
Product Features
| Family Description | High feed end mills with BLMP 06 inserts of 4 cutting edges in max. ap 1.0 mm | FamilyName | TEBL-06 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.7950
Name
Indexable End Mills
FamilyName
TEBL-06
BrandName
Taegutec
