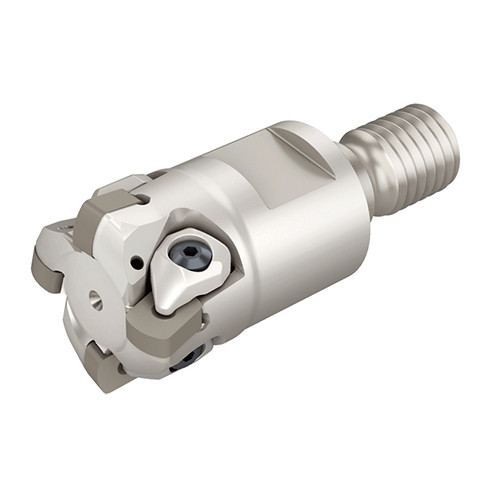

TEBN 320-M10-06CH
CERAMICSFEED modular heads with T-FLEXTEC adaptation for high speed machining of super alloys
Price: Log in For Price

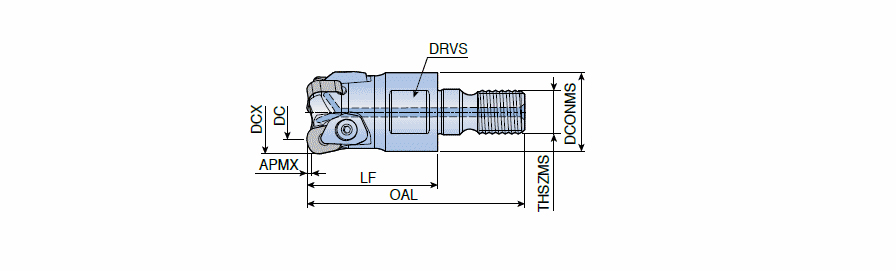

| Cutting Diameter (DC/DCX) | 20 mm | Master Insert Identification (MIID) | BNGX 0603 CH-E04 |
| Cutting Diameter (DC) | 12.5 mm | Functional Length (LF) | 30 mm |
| Cutting Item Count (CICT) | 3 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 1 mm | Body Material | Steel |
| Overall Length (OAL) | 50 mm | Cutting Diameter Maximum (DCX) | 20 mm |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
Product Features
| Family Description | CERAMICSFEED modular heads with T-FLEXTEC adaptation for high speed machining of super alloys | FamilyName | TEBN-M-06CH |
| Remarks | Matched with T FLEXTEC holder Use only air(coolant is prohibited) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0800
Name
Indexable End Mills
FamilyName
TEBN-M-06CH
BrandName
Taegutec
