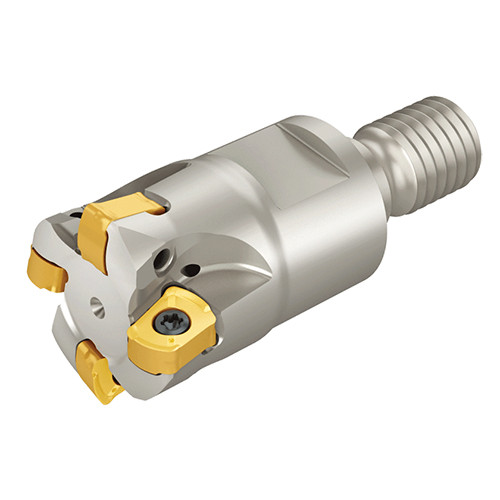

TEBLV 640-M16-06
Modular end mills with T-FLEXTEC adaptation & double sided square inserts BLMV of 4 cutting edges
Price: Log in For Price

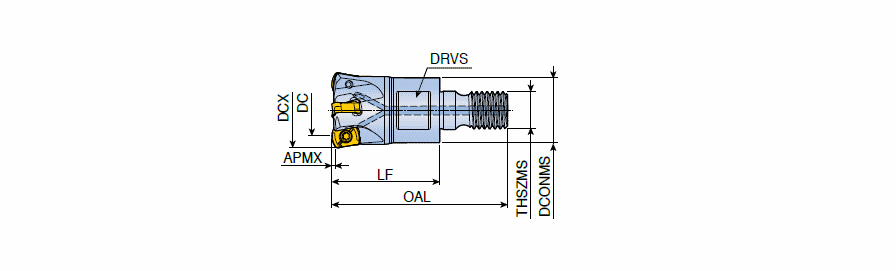

| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | BLMV 0603R-M |
| Cutting Diameter (DC) | 32 mm | Functional Length (LF) | 43 mm |
| Cutting Item Count (CICT) | 6 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 1 mm | Body Material | Steel |
| Overall Length (OAL) | 68 mm | Cutting Diameter Maximum (DCX) | 40 mm |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Step down machining | | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 29 mm |
Product Features
| Family Description | Modular end mills with T-FLEXTEC adaptation & double sided square inserts BLMV of 4 cutting edges | FamilyName | TEBLV-M-06 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.3300
Name
Indexable End Mills
FamilyName
TEBLV-M-06
BrandName
Taegutec
