C12M STFPR 1103
Screw type Carbide shank boring bars for positive Triangular inserts of 11° clearance angle with 91° approach angle
Price: Log in For Price

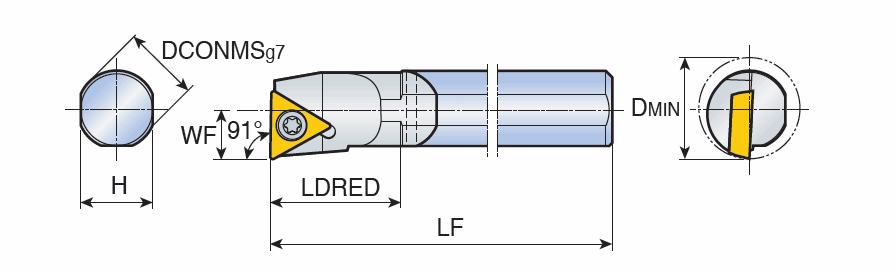

| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | Int 91° App 60° Triangle | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 20 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 16 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw type Carbide shank boring bars for positive Triangular inserts of 11° clearance angle with 91° approach angle | FamilyName | C-STFPR/L |
| Remarks | TPGX type inserts are available with alternate screw (TPGX 1103 > SO 30081I) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.2400
Name
Indexable Internal Turning Tools
FamilyName
C-STFPR/L
BrandName
Taegutec
