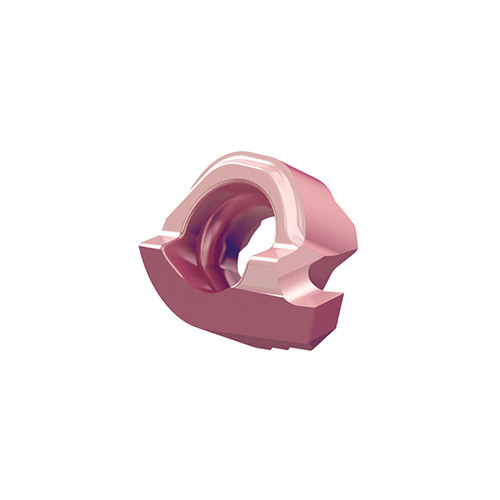

TMIR 6-1.20-0.05 TT8020
Precise inserts for internal shallow grooving on small diameter
Price: Log in For Price

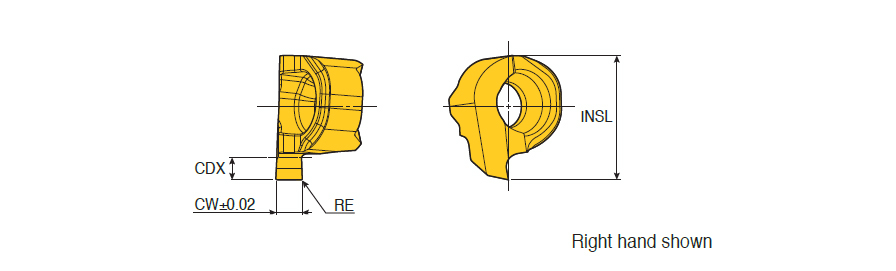

| Cutting Width (CW) | 1.2 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Inserts | Int. Face Grooving | Int. Face Grooving & Turning | Int. Groove & Turn | Int. Grooving | Parting | |
| Corner Radius (RE) | 0.05 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 1 mm | Overall Length (OAL) | 5.7 mm |
| Coating | TiCN | Measurement Type | Metric |
| Grade | TT8020 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Precise inserts for internal shallow grooving on small diameter | FamilyName | TMIR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0020
Name
Groove/Turn Indexable Inserts
FamilyName
TMIR/L
BrandName
Taegutec
