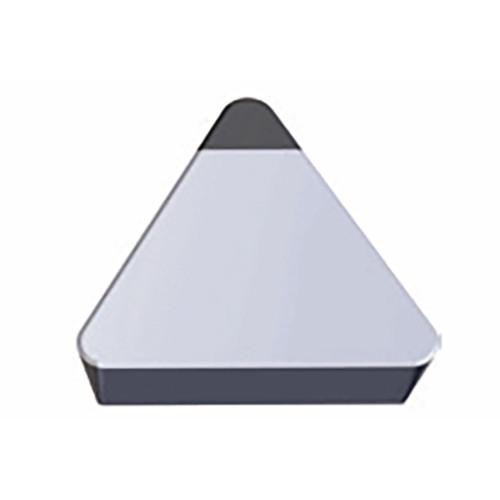

TPGN 160304 LS3 TB610
Positive triangular inserts with CBN tips for finishing of hardened steel and cast iron
Price: Log in For Price
| Applicable Material | | Hard Materials | | Grade | TB610 |
| Application | | Ext 90° App Face 60° Triangle | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 0.05 mm |

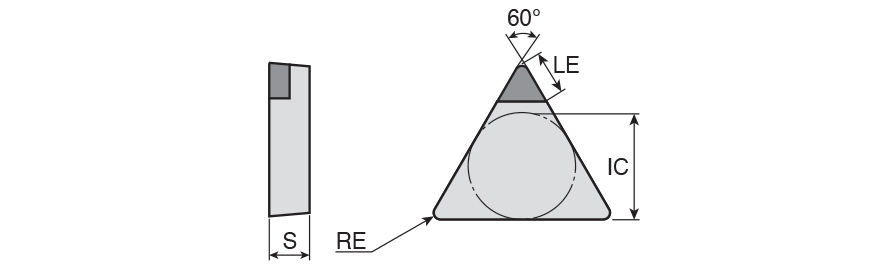

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Cutting Edge Length (L) | 16.5 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features
| Family Description | Positive triangular inserts with CBN tips for finishing of hardened steel and cast iron | FamilyName | TPGN-CBN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0100
Name
Turning Indexable Inserts
FamilyName
TPGN-CBN
BrandName
Taegutec
