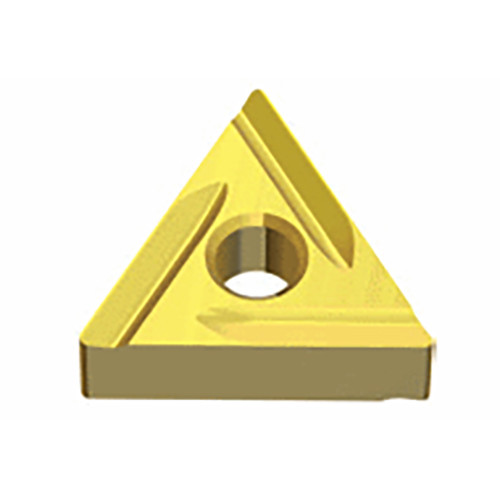

TNGG 160404 R P20

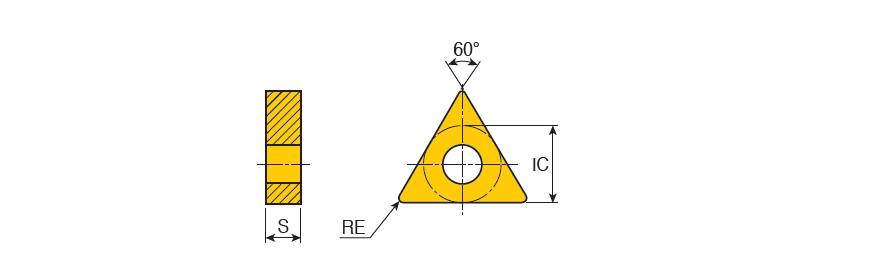

Negative ground 60° Triangular inserts for finish to medium machining with ground chip former
Price: Log in For Price
| Applicable Material | | Steel | | Grade | P20 |
| Application | | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 1 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3.5 mm |
| Cutting Edge Length (L) | 16.5 mm | Min. Turning Feed (ft(min)) | 0.12 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features
| Family Description | Negative ground 60° Triangular inserts for finish to medium machining with ground chip former | FamilyName | TNGG R/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0069
Name
Turning Indexable Inserts
FamilyName
TNGG R/L
BrandName
Taegutec
