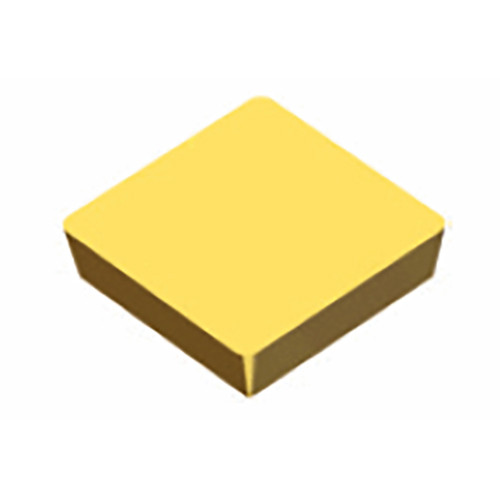

SPGN 120308 P30
Positive Square inserts without chip formers for short chipped materials
Price: Log in For Price
| Applicable Material | | Steel | | Grade | P30 |
| Application | | Ext 45° App 90° Square | Inserts | Int 75° App 90° Square | | Min D.O.C. | 1 mm |

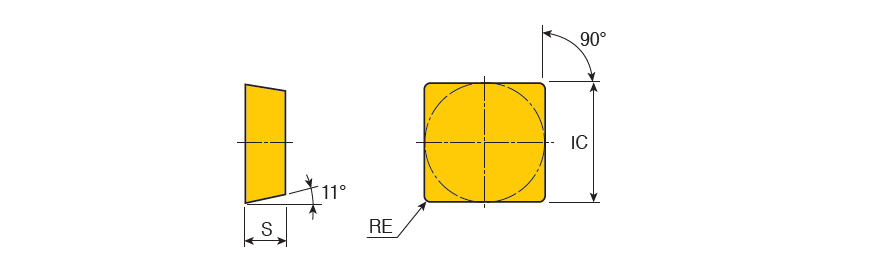

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 5 mm |
| Cutting Edge Length (L) | 12.7 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features
| Family Description | Positive Square inserts without chip formers for short chipped materials | FamilyName | SPGN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0069
Name
Turning Indexable Inserts
FamilyName
SPGN
BrandName
Taegutec
