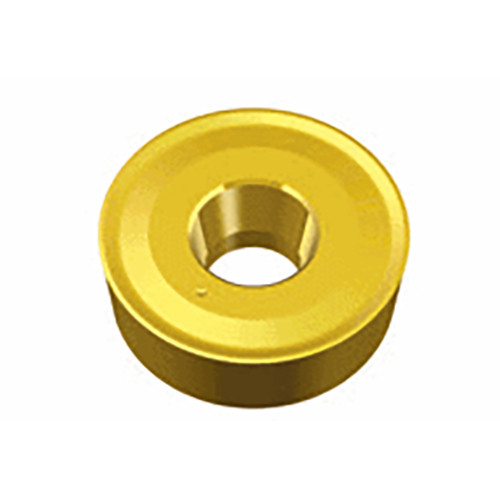

RCMX 120400 TT7100
Positive Round inserts with 7° clearance angle for high feed roughing of steel, stainless steel and cast iron
Price: Log in For Price
| Applicable Material | | Steel | | Min D.O.C. | 2.5 mm |
| Application | | Ext Neutral Round | Ext Profile Round | Inserts | | Depth of Cut Maximum (APMX) | 5 mm |

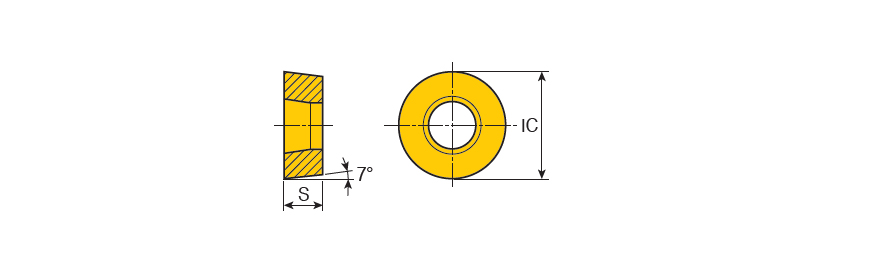

| Insert Thickness (S) | 4.76 mm | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 12 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | TT7100 | Unit | M |
| Fixing Hole Diameter (D1) | 4.19 mm |
Product Features
| Family Description | Positive Round inserts with 7° clearance angle for high feed roughing of steel, stainless steel and cast iron | FamilyName | RCMX. |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0059
Name
Turning Indexable Inserts
FamilyName
RCMX.
BrandName
Taegutec
