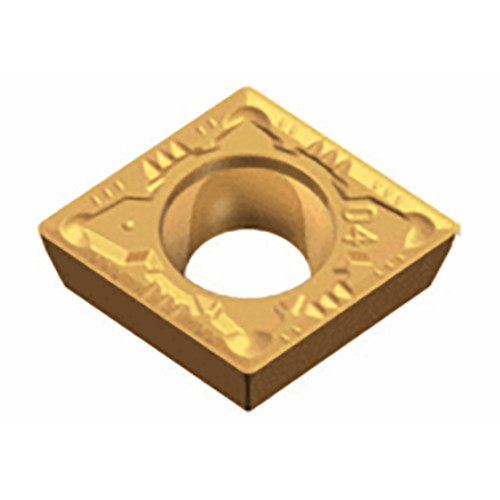

CPMT 080208 FM TT5080

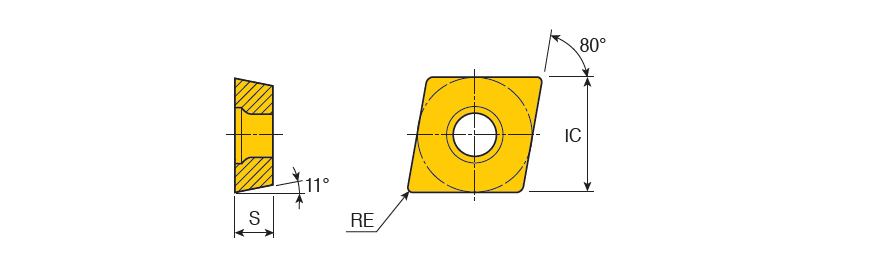

Positive 80° Rhombic inserts for medium and semi-finishing machining of steels & stainless steels with low cutting force & 11° clearance angle
Price: Log in For Price
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT5080 |
| Application | | Inserts | Int 95° App 80° Diamond | | Min D.O.C. | 0.8 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 0 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 7.94 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
Product Features
| Family Description | Positive 80° Rhombic inserts for medium and semi-finishing machining of steels & stainless steels with low cutting force & 11° clearance angle | FamilyName | CPMT-FM |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0027
Name
Turning Indexable Inserts
FamilyName
CPMT-FM
BrandName
Taegutec
