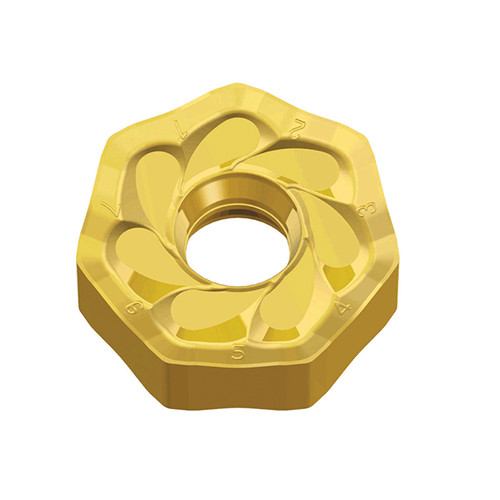

XNHU 0906 ANTN-MM TT6080
Ground double-sided inserts of economical 14 cutting edges with optimized geometry for cast iron in max. depth of cut 5.0 mm
Price: Log in For Price

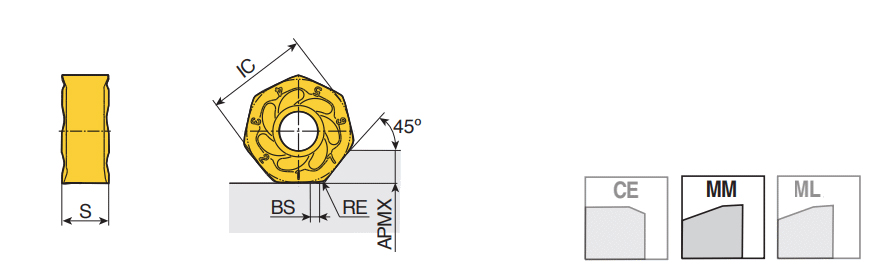

| Applicable Material | | Cast Iron | Hard Materials | | Grade | TT6080 |
| Application | | Chamfer & Serration | Facing | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Cutting Edge Length (L) | 5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.13 mm/tooth |
| Depth of Cut Maximum (APMX) | 1.5 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 18.5 mm | Body Material | Carbide |
| Insert Thickness (S) | 6.35 mm | Unit | M |
| Coating | AlTiN+TiN |
Product Features
| Family Description | Ground double-sided inserts of economical 14 cutting edges with optimized geometry for cast iron in max. depth of cut 5.0 mm | FamilyName | XNHU 09 ANTN-MM |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0244
Name
Milling Indexable Inserts
FamilyName
XNHU 09 ANTN-MM
BrandName
Taegutec
