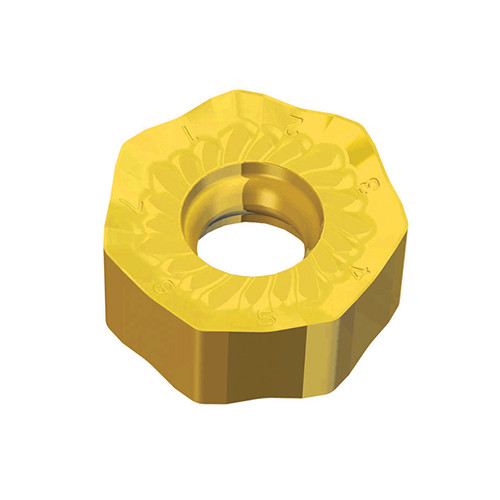

XNHU 0605 ANN-ML TT6080
Ground double-sided inserts of economical 14 cutting edges with sharp & positive geometry for difficult-to-cut material in max. depth of cut 3.5 mm
Price: Log in For Price

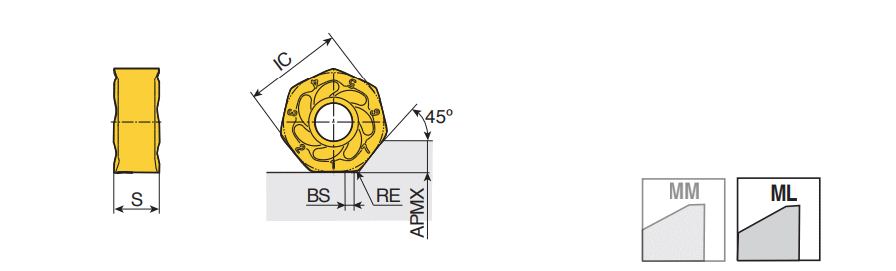

| Applicable Material | | Cast Iron | Hard Materials | | Grade | TT6080 |
| Application | | Chamfer & Serration | Facing | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Cutting Edge Length (L) | 3.5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 3.5 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 13.7 mm | Body Material | Carbide |
| Insert Thickness (S) | 6.2 mm | Unit | M |
| Coating | AlTiN+TiN |
Product Features
| Family Description | Ground double-sided inserts of economical 14 cutting edges with sharp & positive geometry for difficult-to-cut material in max. depth of cut 3.5 mm | FamilyName | XNHU 06 ANN-ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0109
Name
Milling Indexable Inserts
FamilyName
XNHU 06 ANN-ML
BrandName
Taegutec
