6NGU 090516R-ML TT9080

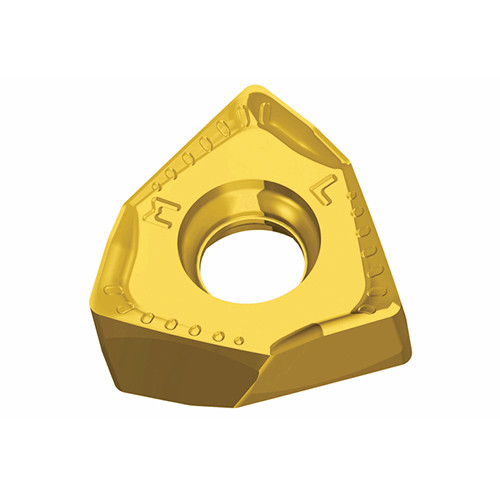

Double-sided ground positive 6 cutting edges inserts for light machining and 90° shoulders
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Facing | Inserts | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Cutting Edge Length (L) | 9.2 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.6 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Depth of Cut Maximum (APMX) | 7.5 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 13.05 mm | Body Material | Carbide |
| Insert Thickness (S) | 6.7 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features
| Family Description | Double-sided ground positive 6 cutting edges inserts for light machining and 90° shoulders | FamilyName | 6NGU 06/09-ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0098
Name
Milling Indexable Inserts
FamilyName
6NGU 06/09-ML
BrandName
Taegutec
