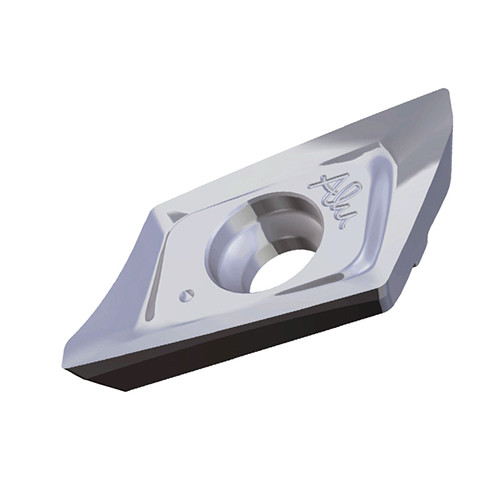

XEVT 160504R-AL K10
Sharp ground & polished inserts in various corner R with V bottom & stopper for high speed machining of aluminum and non-ferrous materials
Price: Log in For Price
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | K10 |
| Application | | Facing | Helical Interpolation | Inserts | Rampdown | Shouldering | Slotting | Step down machining | | Maximum Feed per Tooth (fz(max)) | 0.4 mm/tooth |
| Cutting Edge Length (L) | 22.2 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 12 mm | Measurement Type | Metric |
| Insert Width (W1) | 11.2 mm | Body Material | Carbide |
| Insert Thickness (S) | 5.5 mm | Unit | M |
| Coating | Uncoated |
Product Features
| Family Description | Sharp ground & polished inserts in various corner R with V bottom & stopper for high speed machining of aluminum and non-ferrous materials | FamilyName | XEVT 16/22-AL |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0113
Name
Milling Indexable Inserts
FamilyName
XEVT 16/22-AL
BrandName
Taegutec
