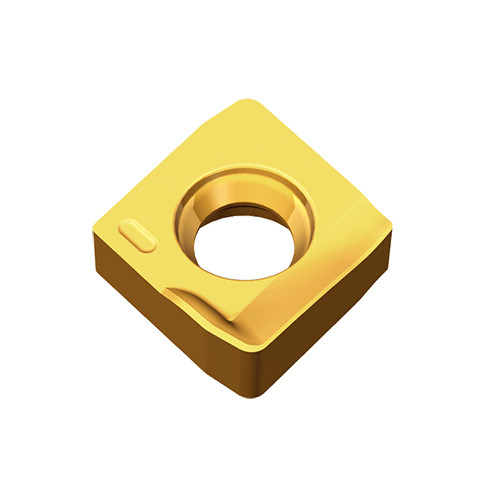

2PKT 050304R-M TT9080
Positive double-sided inserts with two helical cutting edges & strong double-dovetail design for stable machining of 90° shouldering
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Facing | Helical Interpolation | Inserts | Rampdown | Shouldering | Slotting | Step down machining | | Maximum Feed per Tooth (fz(max)) | 0.18 mm/tooth |

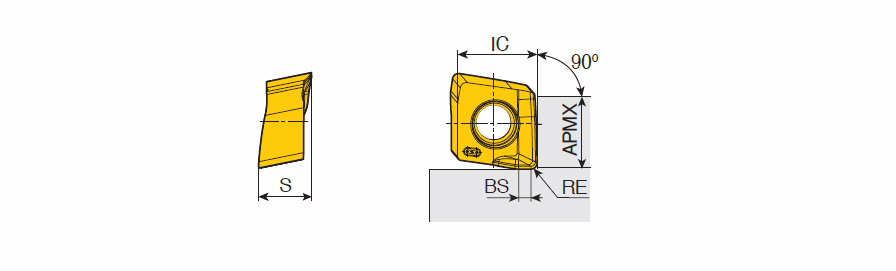

| Cutting Edge Length (L) | 4.7 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.06 mm/tooth |
| Depth of Cut Maximum (APMX) | 4.2 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 5.17 mm | Body Material | Carbide |
| Insert Thickness (S) | 3.4 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features
| Family Description | Positive double-sided inserts with two helical cutting edges & strong double-dovetail design for stable machining of 90° shouldering | FamilyName | 2PKT 05-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0019
Name
Milling Indexable Inserts
FamilyName
2PKT 05-M
BrandName
Taegutec
