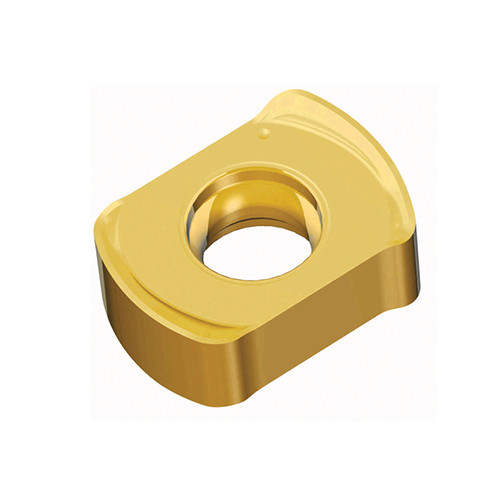

BLMP 0603R-M TT2510
Unique double-sided inserts of 4 cutting edges for high feed milling of general applications in max. ap 1.0 mm
Price: Log in For Price
| Applicable Material | | Steel | Hard Materials | | Grade | TT2510 |
| Application | | Facing | Helical Interpolation | High Feed Milling | Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 1.2 mm/tooth |
| Cutting Edge Length (L) | 9 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.3 mm/tooth |

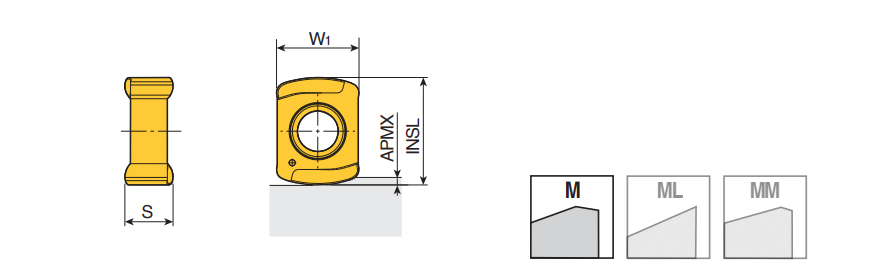

| Insert Width (W1) | 6.39 mm | Measurement Type | Metric |
| Insert Thickness (S) | 3.73 mm | Body Material | Carbide |
| Coating | AlTiN | Unit | M |
Product Features
| Family Description | Unique double-sided inserts of 4 cutting edges for high feed milling of general applications in max. ap 1.0 mm | FamilyName | BLMP 06-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0030
Name
Milling Indexable Inserts
FamilyName
BLMP 06-M
BrandName
Taegutec
