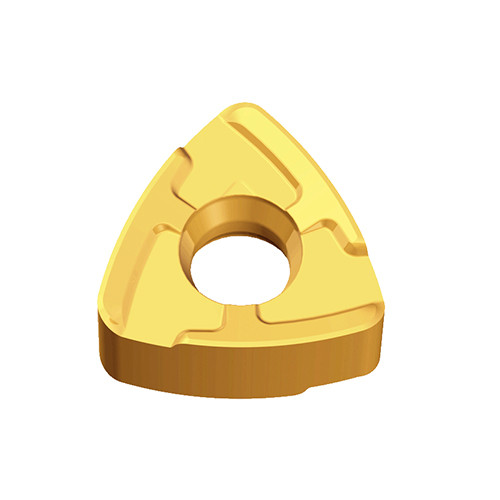

BLMP 1306R-MR TT9080
Double-sided inserts of reinforced 6 cutting edges for high feed milling of heavy roughing in max. ap 2.0 mm due to strong geometry
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 2 mm/tooth |
| Application | | Facing | Helical Interpolation | High Feed Milling | Inserts | Profiling | Rampdown | | Cutting Edge Material | Carbide |
| Cutting Edge Length (L) | 12.3 mm | Minimum Feed per Tooth (fz(min)) | 0.4 mm/tooth |
| Depth of Cut Maximum (APMX) | 2 mm | Number of Cutting Edges | 4 |

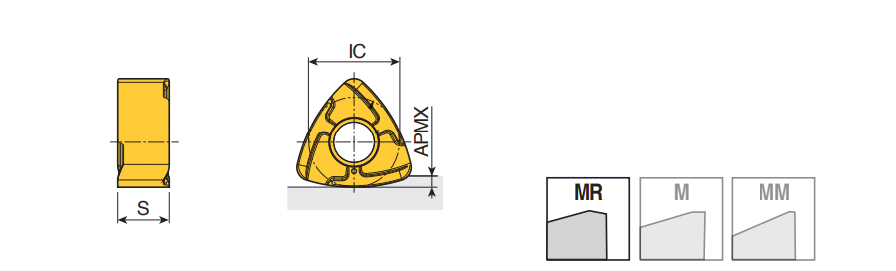

| Inscribed Circle Diameter (IC) | 12.3 mm | Measurement Type | Metric |
| Insert Thickness (S) | 7 mm | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
| Grade | TT9080 |
Product Features
| Family Description | Double-sided inserts of reinforced 6 cutting edges for high feed milling of heavy roughing in max. ap 2.0 mm due to strong geometry | FamilyName | BLMP 13-MR |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0136
Name
Milling Indexable Inserts
FamilyName
BLMP 13-MR
BrandName
Taegutec
