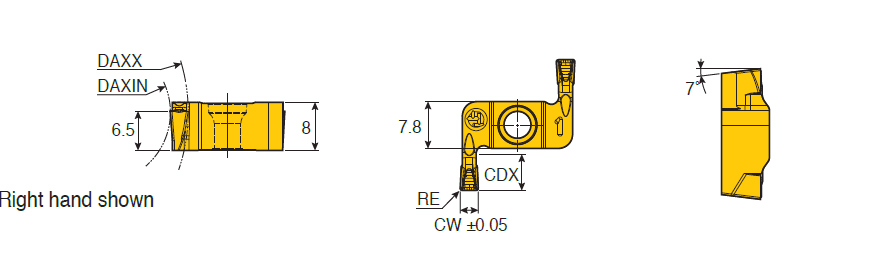

| Cutting Width (CW) | 3 mm | Axial Groove Outside Diameter Maximum (DAXX) | - |
| Corner Radius (RE) | 0.3 mm | Min. Grooving Feed (fg(min)) | 0.07 mm |
| Cutting Depth Maximum (CDX) | 6 mm | Max. Grooving Feed (fg(max)) | 0.2 mm |
| Cutting Edge Material | Carbide | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Grade | TT9080 | Measurement Type | Metric |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Inserts | | Coating | TiAlN+TiN |
| Depth of Cut Maximum (APMX) | 1.8 mm | Body Material | Carbide |
| Min D.O.C. | 0.4 mm | Unit | M |
Product Features

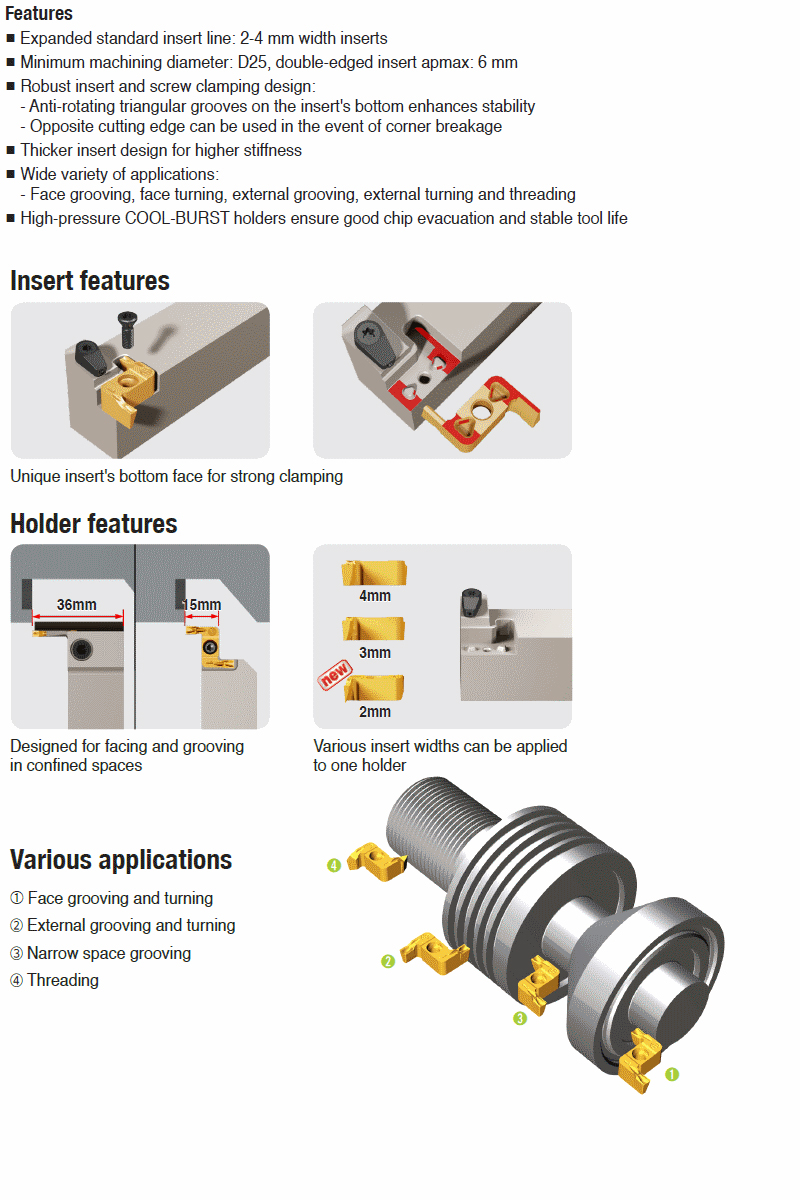

| Family Description | Screw type double-ended inserts with rigid & anti-rotating design for face grooving, turning & multiple applications | FamilyName | TDFX-R/L (FACE-R) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0186
Name

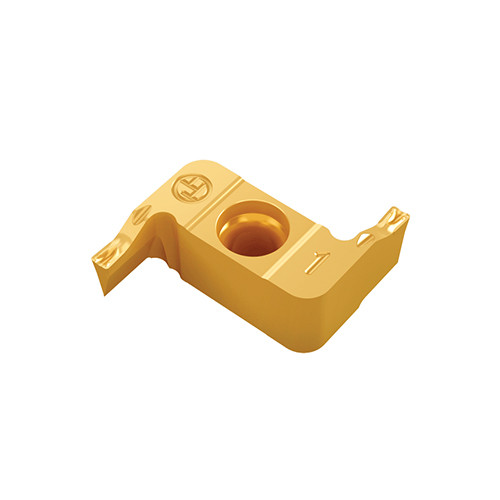

Face Groove/Turn Indexable Inserts
FamilyName
TDFX-R/L (FACE-R)
BrandName
Taegutec
